CAN@net II/VCI, CAN - Ethernet PC-interface

CAN via Ethernet PC-interface

Remark: This product is not recommended for new developments.
For new projects we recommend to use the successor product,  CAN@Net NT 200

The CAN@net II allows simple, flexible access from a PC to CAN-bus systems via Ethernet. Due to its ability to support the TCP/IP protocol, the CAN@net II allows the worldwide direct connection to a PC, implementation in an LAN, or, communication with the gateway via the Internet.
Ixxat CAN@net II/VCI
Ixxat CAN@net II/VCI
Ixxat CAN@net II/VCI

Features and benefits

  • Easy CAN access over large distances
  • Common driver interface for easy exchange of the PC interface type
  • Also abailable as gateway/bridge device

CAN-to-PC via Ethernet interface

The CAN@Net II/VCI is connected to a Windows or Linux PC via TCP / IP. Using the supplied CAN driver, the CAN@Net II is controlled in the same way as all other Ixxat CAN PC interfaces. Thus, all VCI-based CAN software and tools can be used in conjunction with the CAN@net II/VCI.

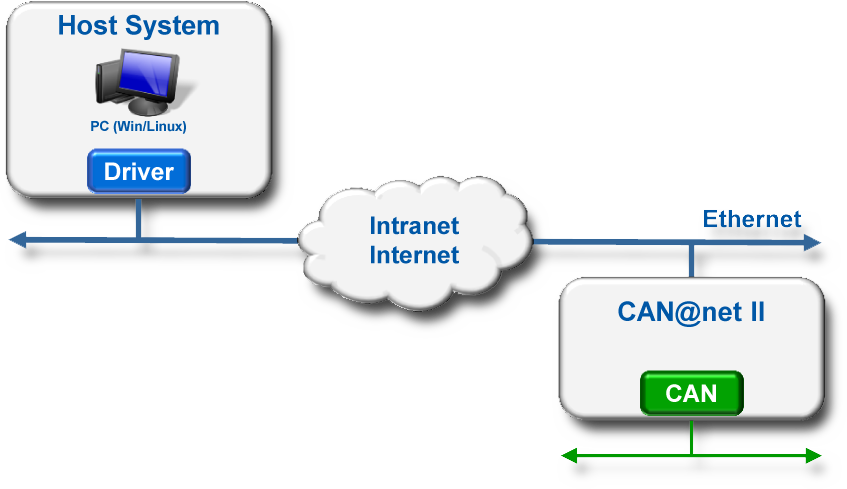

Ixxat CAN@net II/VCI functionality
Ixxat CAN@net II/VCI functionality

Driver

In software, the same API set is available as for the other CAN PC interfaces. The VCI CAN driver is capable of communicating via a PC with up to 128 CAN@net II devices simultaneously.

Generic-variant

In addition to the CAN@net II/VCI, we also offer the CAN@net II/Generic. This one can be addressed via a standard TCP/IP socket or can be used as a 'CAN-Ethernet-CAN'-bridge.

Technical data
Ethernet-Interface 10/100 Mbit/s Ethernet (10Base-T/100Base-T),
  Autodetect, Connector RJ45, Auto crossover
IP address allocation DHCP, via PC tool
Microcontroller Freescale MCF5235
Memory extension 8 MByte DRAM, 4 MByte Flash
CAN controller SJA1000; CAN 2.0 A/B
CAN bus interface ISO 11898-2, Sub D9 connector according to CiA 303-1
Power supply 9-32 V DC, 3 W
Galvanic isolation 1 kV, 1 sec.
Size 22.5 x 100 x 115 mm
Housing Plastic housing for top hat rail mounting
Temperature range -20 ºC ... +70 ºC
Certification CE, FCC, CSA
Contents of delivery
- CAN@net II/VCI Interface
- Driver VCI for Windows™ 2000, XP, Vista, Win 7, Win 8 and Win 10 (all 32/64-bit)
- Basic CAN-monitor "miniMon" (Windows™)
- User Manual

Part number(s)

1.01.0086.10200
CAN@net II/VCI, 1x Ethernet, 1x CAN with Galvanic Isolation
CAN@net II/VCI, 1x Ethernet, 1x CAN with Galvanic Isolation
