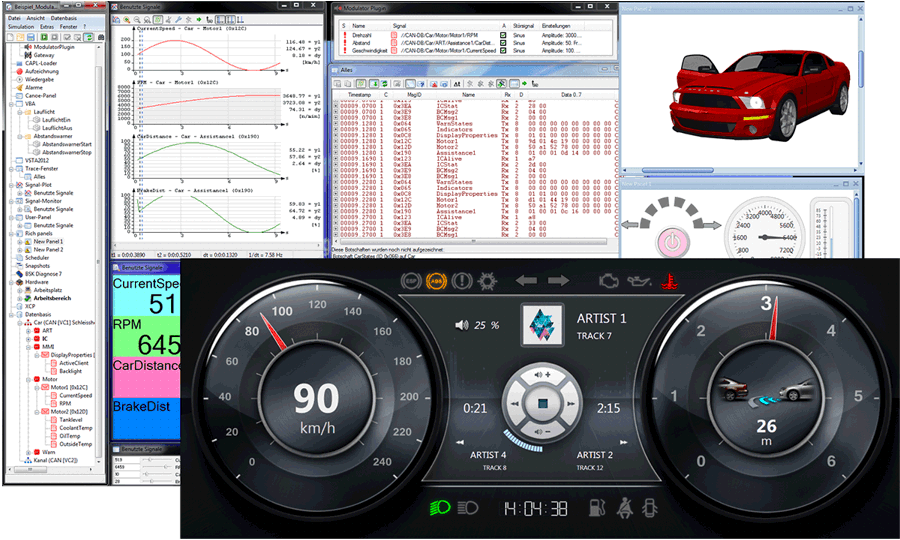

CanEasy, the analysis- and testing environment
Simulation and analysis tool for CAN, CAN FD, LIN and Automotive Ethernet
With CanEasy real and simulated electronic control units ECUs
CanEasy is supported by all pc can-interfaces by Ixxat.
Highlights
- Support of various CAN, CAN FD, LIN interface like HMS, Ixxat, Vector, etc.
- Easy Handling
- Drag & Drop
- Clear and logical arrangement
- Easily extendable (plug-ins)
Variants
Professional
The full program
CanEasy Professional contains the full range of functions for simulation, test, diagnosis and analysis. Users can also create RichPanel Runtime workspaces.
Users: This edition is designed for developers with high requirements.
Standard (Plus)
The core program
CanEasy Standard represents a variant of the Professional Edition reduced to CanEasy's main functions. Although it does not include CANoe integration (CAPL), XCP, Automotive Ethernet and others, the options UDS Diagnostics and RichPanel Standard can be added individually.
Users: The Standard Edition is designed for developers who do not require the full range of functions of the Professional Edition for their work.
Compare the different software variants
CanEasy is available in different product versions. The correct set of functionality is therefore always available.
| Standard | Standard Plus | Professional | |
|---|---|---|---|
| Channel | |||
| Number of CAN / FD Channels (max.) | 99 | 99 | 99 |
| Number of LIN Channels (max.) | 99 | 99 | 99 |
| Number of Ethernet Channels (max.) | 99 | ||
| Number of FlexRay Channels (max.) 1 | 1 | 1 | 1 |
| Supported Hardware Interfaces | |||
| Ixxat VCI devices like USB-to-CAN, PC cards CAN-IB, CAN@net NT | |||
| Ixxat VCI devices CANnector / FRC-EP170 / FRC-EP190 | |||
| Vector | |||
| Further vendors | |||
| Functions | |||
| CAN/CAN FD/LIN Analyzing | |||
| XCP/CCP Protocol | |||
| FlexRay Analyzing/Gateway 1 | |||
| Residual Bus Simulation (RBS) PC based | |||
| Database Editor (DBC, Autosar [ARXML], LDF) | |||
| Search Function (ECU, Messages, Signals, Variables, Attributes, …) | |||
| Recording (ASC, BLF, MDF, binary) | |||
| Replay | |||
| Trigger | |||
| Scheduler/Sequenzer | |||
| Trace-Window | |||
| Signal-Plots/ Signal-Monitors | |||
| User-Panels | |||
| Automated Panels (Signals, Cycle-Time, Messages) | |||
| Snapshots | |||
| Standard-Plug-Ins (Modulator, Statistics, Formular, …) | |||
| Integrated Development Envirorment Visual Basic for Application | |||
| Integrated Development Envirorment Visual Studio für Application C#/.net | |||
| Programming | |||
| Matlab/ Simulink Support | |||
| Environment Variables | |||
| RichPanel Visualisation | |||
| UDS Diagnose (Import CDD, PDX, ODX) | |||
| Fault Memory Windows | |||
| Automotive Ethernet Analyzing | |||
| SOME/IP / Automotive Ethernet | |||
| Vector CANoe CAPL Converter |
1 = only with Gateway/Generic Ethernet functionality of Ixxat FRC-EP170/190
| Hardware requirements | |
| - PC with Windows | |
| - Ixxat CAN interface and VCI driver | |
| - Ixxat CAN-FD interface and VCI driver for CAN-FD | |
| - Ixxat CAN-interface with LIN-interface and VCI driver for LIN | |
| Contents of delivery |
| - Software as single user license |
| - User Manual |
