Ixxat USB to CAN FD PC interface

Cost-effective CAN FD adapter and PCinterface family for USB

The IXXAT USB-to-CAN FD has – depending on the device variant – up to two channels, which support three switchable operation modes: ISO CAN FD, non ISO CAN FD and CAN High-Speed. The automotive variant provides also one LIN channel.
Thus, these variants addresses a wide range of applications, both in industrial and automotive sectors.
IXXAT USB-to-CAN FD Overview
IXXAT USB-to-CAN FD Overview
IXXAT USB-to-CAN FD Overview

By using powerful hardware and connecting over USB 2.0 Hi-Speed (480 MBit/sec), these interfaces achieve very high data throughput with minimum latency and low power consumption. This allows them to provide the reliable, loss-free transmission and receipt of messages in CAN-FD and CAN networks at high transmission rates and bus load.
The messages are also timestamped and can be filtered and buffered directly in the USB-to-CAN FD.

Features and benefits

  • CAN, CAN FD and LIN in one device
  • Cost-effective and extremely versatile
  • Common driver interface for easy exchange of the PC interface type
  • For industrial and automotive applications
  • Galvanic isolation

The USB-to-CAN FD is available in different variants.

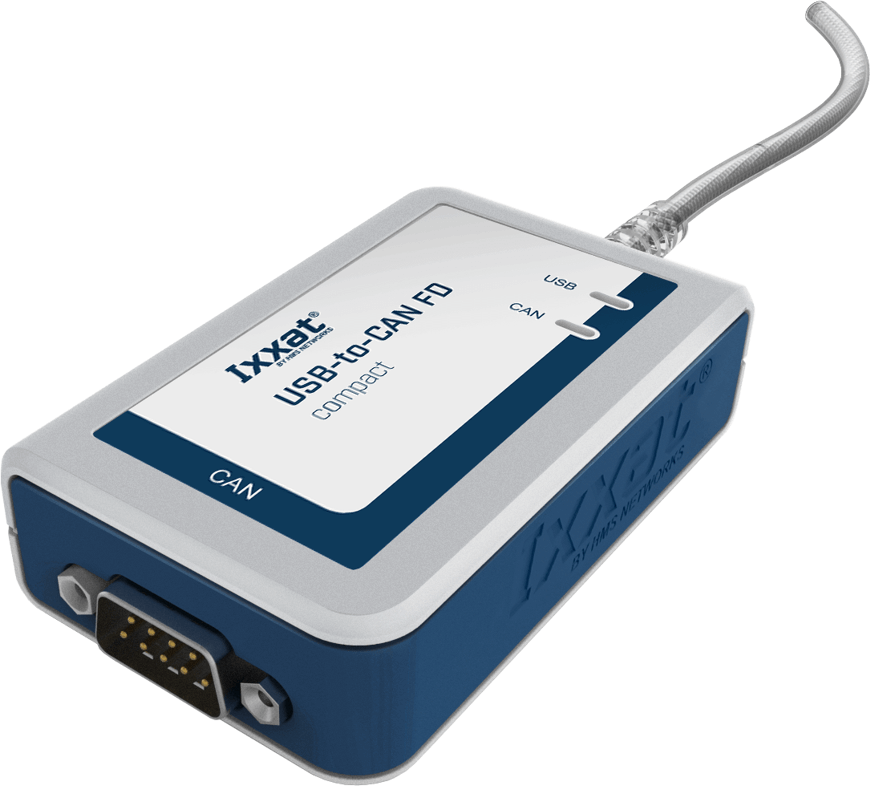

USB-to-CAN FD Compact

IXXAT USB-to-CAN FD Compact
IXXAT USB-to-CAN FD Compact
IXXAT USB-to-CAN FD Compact
Cost-effective variant with 1x CAN-FD. the CAN-FD connection is implemented as a sub-D9 plug, with galvanic isolation.

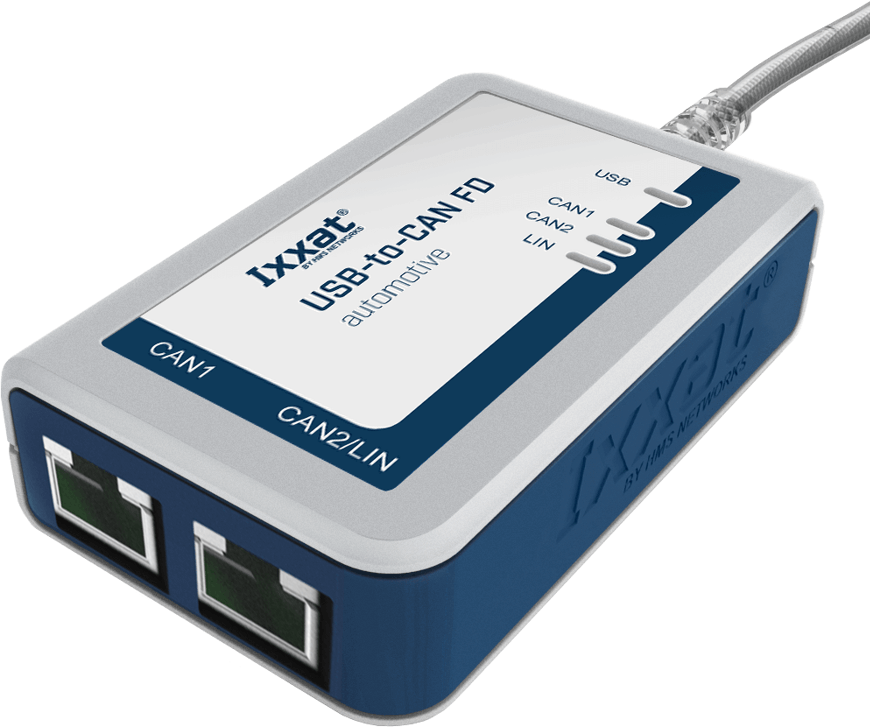

USB-to-CAN FD Automotive

IXXAT USB-to-CAN FD Automotive
IXXAT USB-to-CAN FD Automotive
IXXAT USB-to-CAN FD Automotive
Variant for automotive applications. Contains 2x CAN-FD, of which one is switchable to LIN, to be used as either LIN-master or –slave. All channels with galvanic isolation.
Adapter cables to sub-D9 are included.

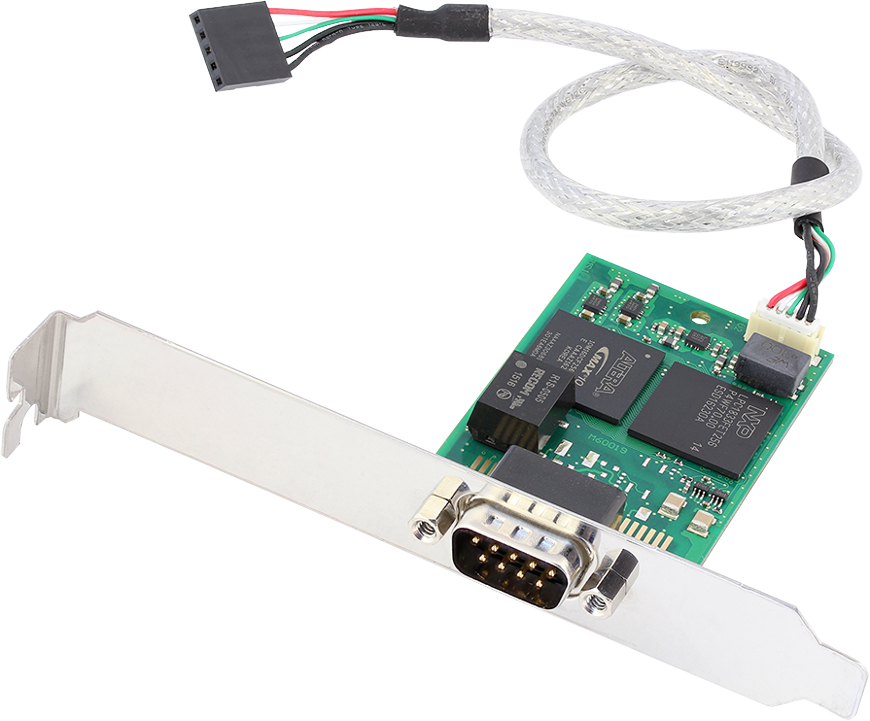

USB-to-CAN FD Embedded

IXXAT USB-to-CAN V2 Embedded
IXXAT USB-to-CAN V2 Embedded
IXXAT USB-to-CAN V2 Embedded
A low-cost CAN-FD variant with an extremely compact design specifically for use in compact industrial PCs or similar embedded controllers. Only available with sub-D9 connector and galvanic isolation. Can be supplied with or without a bracket for a pc expansion slot.
Technical Data
PC bus interface USB 2.0 (high speed 480 MBit/sec)
USB connector Type A, fixed to housing, cable lenght appr. 90 cm 1
Microcontroller 32 bit
CAN-FD
 CAN-FD controller IFI CAN_FD IP
 CAN-FD baudrates 250/500 kbit/s arbitration rate with 500 to 10000 kbit/s data rate (predefined)
User defined bitrate is possible
 CAN-FD transceiver Microchip MCP2562FDT
CAN
 CAN controller CAN 2.0A/B
 CAN baudrates 10 kBit/s ... 1 Mbit/s
 CAN high-speed transceiver     Microchip MCP2562FDT
LIN2
 LIN transceiver 2 TJA1020
 LIN protocol 2 V1.3 and V2.0
 LIN baudrate 2 Max. 20 kBaud
CAN/LIN 2 connection According to CiA 303-1
Galvanic decoupling Optional (800 VDC/ 500 VAC, 1 sec.)
Power supply Supplied by USB-port, 5 Volt, max 300 mA
Temperature range -20 ºC ... +70 ºC
Certification CE
Dimensions 80 x 45 x 20 mm

1 Not applicable for CAN-to-USB FD Embedded, this version has an internal USB-connection
2 CAN low-speed and LIN applicable only to USB-to-CAN FD Automotive
Contents of delivery
- USB-to-CAN FD Interface
- Adapter cables to D-sub9 (Automotive variant only)
- Driver VCI for Windows™ 2000, XP, Vista, Win 7, Win 8 and Win 10 (all 32/64-bit)
- Driver ECI for Linux, VxWorks and other OS
- Bus-monitor "canAnalyser3 Mini" for CAN and LIN, when applicable (Windows™)
- User Manual

Part number(s)

Single CAN-FD

1.01.0351.12001
USB-to-CAN FD Compact, 1x CAN-FD or 2.0A/B [D-sub9]
with Galvanic Isolation
USB-to-CAN FD Compact, 1x CAN-FD or 2.0A/B [D-sub9]with Galvanic Isolation
1.01.0352.12001
USB-to-CAN FD Embedded, 1x CAN-FD or 2.0A/B [D-sub9]
with Galvanic Isolation
USB-to-CAN FD Embedded, 1x CAN-FD or 2.0A/B [D-sub9]with Galvanic Isolation

Dual CAN-FD and LIN

1.01.0283.22042
USB-to-CAN FD Automotive, 2x CAN-FD or 2.0A/B,
1x switcheable to LIN [2x RJ45], all with Galvanic Isolation
USB-to-CAN FD Automotive,  2x CAN-FD or 2.0A/B,1x switcheable to LIN [2x RJ45], all with Galvanic Isolation
