Embedded Platform - Host to access to automotive bus systems

Embedded Platform

Host to access to automotive bus systems

Embedded Platform - Host to access to automotive bus systems

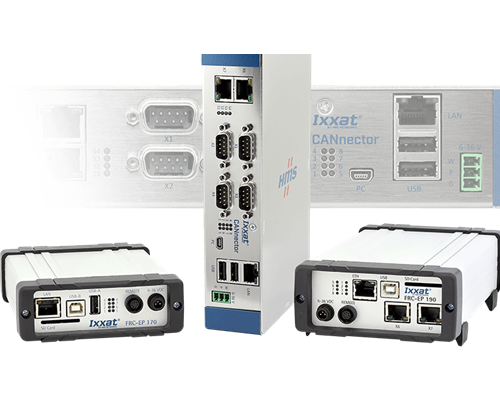

The following Embedded Platform devices arte available:

CANnector

Intended for CAN, CAN FD and LIN applications and ideal for for industrial environments and controls

EP-series

Intended for Flexray, CAN, CAN FD and LIN in all applications and ideal for prototyping, test rigs and laboratorie

Introduction

The Embedded Platform is the basis for multiple automotive testing and analysis applications, both with the Ixxat ACT software and customer-specific software solutions.

  • Powerful processor and a real-time operating system
  • Variety of different automotive communication interfaces
  • Stand-alone and PC-based operation
  • Basis for Ixxat ACT and customer-specific software
  • solutions based on the development tool
  • Various interfaces for CAN, LIN, FlexRay, EtherCAT...

The modular concept of the Ixxat automotive products enables an easy adjustment to individual requirements – both in terms of functionality and costs.

Variants


  CANnector FRC-EP 170 FRC-EP 190
FlexRay A/B channel - 1x Up to 2x
CAN High Speed Up to 8x Up to 4x Up to 8x
CAN Low Speed - Up to 1x Up to 2x
CAN FD Up to 4x Up to 2x Up to 4x
LIN 2x 1x 2x
K-Line - 1x 2x
RS232 - 1x 1x
USB 3x (Host A & Device B) 2x (Host A & Device B) 2x (Host A & Device B)
Digital in Up to 2x Up to 4x Up to 4x
Digital uit Up to 2x Up to 4x Up to 4x
Analog in (12 bit)     Up to 4x
Optional interfaces EtherCAT-Slave   EtherCAT-Slave
SDHC card slot - 1x 1x
Internal expansionslots Anybus Brick slot 2x mPCIe formfactor 2x (FlexRay, CAN,
CAN-FD, EtherCAT)
External expansions Wi-Fi, USB devices, 4G Wi-Fi, USB devices, 4G Wi-Fi, USB devices, 4G
Others extensions Prepared: GSM/GPS, Bluetooth
and Automotive Ethernet
Prepared: GSM/GPS, Bluetooth
and Automotive Ethernet
Prepared: GSM/GPS, Bluetooth
and Automotive Ethernet
PC connection Ethernet, USB 2.0, WLAN Ethernet, USB 2.0, WLAN Ethernet, USB 2.0, WLAN
Protection class IP40 IP42 IP42
