Embedded USB interface

M30 USB plug-in module for Anybus-CC communication slot

The Anybus CompactCom M30 for USB is a complete embedded communication module and slave interface which enables your products to communicate on a USB network. The module contains the complete functionality of industrial network slave/adapter interfaces and integrate through a standardized and network independent parallel or serial application interface towards the host automation device

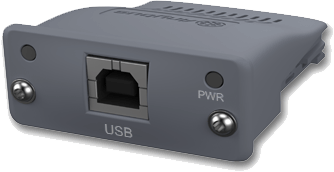

Anybus CompactCom M30 - USB
Primary network
Anybus CompactCom M30 - USB
Anybus CompactCom M30 - USB

On USB, the device acts as a standard serial adapter, which makes it transparent to any software using serial communications, i.e. no special software is required to be able to use the module. Acting only on the physical layer, the module performs no processing on the serial data itself.

Forward compatible with M40

The CompactCom 40-series modules support the same APIs as the 30-series Modules. This means, if you are already using or want to combine the USB with 40-series embedded Industrial Ethernet modules, it's possible to support both a mixture of CompactCom 30-series and 40-series modules within your embedded industrial device.

Features and benefits

  • A complete, interchangeable communication module with connectors
  • Short in-design with free assistance from HMS ensures a fast time to market
  • for network compliance (enables faster network certification)
  • Standard application hardware interfaces: 8-bit parallel and serial

USB Slave Interface

  • Passive module w/o procesor
  • Completely transparent serial USB Interface
  • Module Identification against the application
  • Physical layer converter for USB
  • Host drivers supported by Silicon Laboratories

New applications or designs

Although CompactCom 30 series is fully available and supported by HMS with network updates and maintenance, we recommend the new CompactCom 40 series for new designs, especially for Industrial Ethernet versions.

Technical specifications
Dimensions (L•B•H) 52 x 50 x 22 mm
51 x 37 x 16 mm (without housing)}
Operating temperature -40 to +70 °C
-40 to +85 °C (without housing)
Power requirement 3.3 VDC, ±0.15 VDC
Application Interface 8-bit parallel
UART
Profile support Generic device
LED indication Integrated on front (with housing), via application interface (without housing).
Indicates Module Status and Network Status.
Connectors USB Type B
>Galvanic isolation Yes
Mechanical rating IP20, NEMA rating 1
Mounting PCB mount (hook-on) or mounting clip (without housing), electrical via CompactFlash connector
Certifications CE, CULUS, RoHS

Part number(s)

AB6209
Anybus CompactCom M30 USB Passive
Anybus CompactCom M30 USB Passive
AB6309
Anybus CompactCom M30 USB Passive without housing
Anybus CompactCom M30 USB Passive without housing

Options

SP1137
CompactCom Host Connector
CompactCom Host Connector
