J1939 canAnalyser

J1939 protocol module for canAnalyser 3

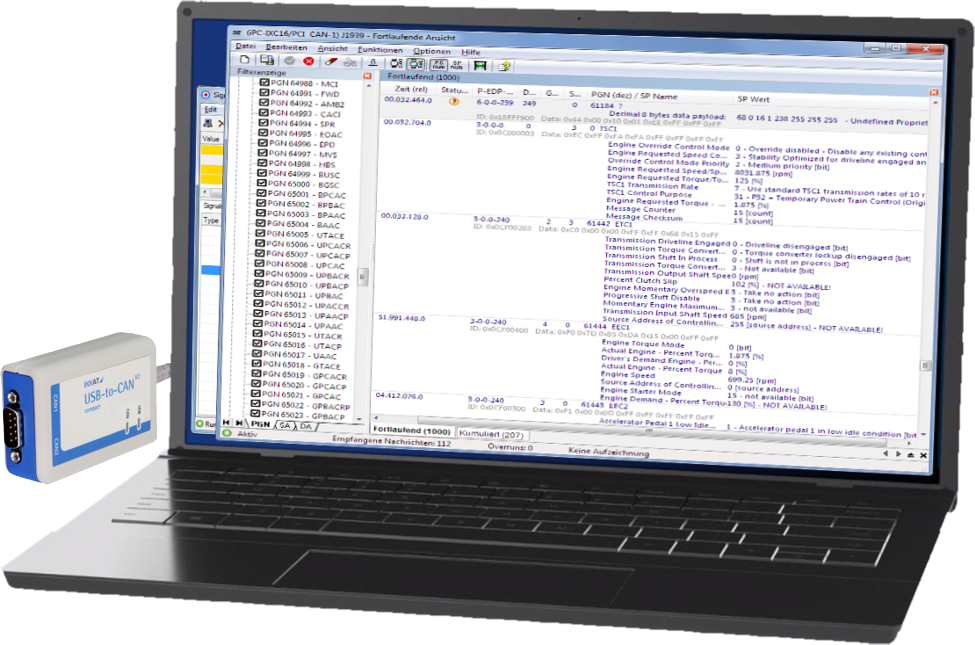

As an addition to the canAnalyser, the J1939 Module provides the display of received messages according to the SAE J1939 notation. This includes the interpretation of received J1939 messages and the extraction of Parameter Group Number, Source Address, Destination Address and transmitted Suspect Parameters with name, value and unit. Furthermore the Messages Priority, Data Page, Protocol Data Unit Format and Protocol Data Unit Specific Fields are displayed.
Ixxat J1939 module for canAnalyser/canAnalyser-lite 3
Primary network
Ixxat J1939 module for canAnalyser/canAnalyser-lite 3
Ixxat J1939 module for canAnalyser/canAnalyser-lite 3

Features and benefits

  • Simplifies analysis of SAE J1939 networks and devices
  • Direct display of all SAE J1939 messages according to SAE J1939 specification
  • Easy integration into canAnalyser test environment

J1939 Module

The J1939 module allows the processing and interpretation of the J1939 transport protocol as well as the interpretation of diagnostic messages. Proprietary application messages can be interpreted if a user defined database with Parameter Group and Suspect Parameter definitions is provided. Such a database can be e.g. a XML file generated by the Ixxat SAE J1939 Designer.

To clearly arrange displayed J1939 messages, it is possible to set filters for Parameter Group Numbers as well as Source and Destination Addresses. Processing/documentation of the received messages can be made permanent or on command by a CSV export to an ASCII file.

System requirements
- canAnalyser or canAnalyser-lite (version 3.0 of newer)
Contents of delivery
- Software as single-user license
- User Manual

Part number(s)

SAE J1939 Module for canAnalyser V3

Getting interested?

Are you interested in the J1939 canAnalyser? Please request, without any obligation, for a quote. Would you like more information? Please send an email to or visit our contact page.
You can call us if you like, we can be reached at +31-40-2301.922. We are pleased to help you and do offer you practical advice and support.
