J1939 Designer

Configuration editor and code generator for J1939 projects

The SAE J1939 Designer is a powerful tool for creating and management of J1939 projects. A J1939 project consists of the definition of parameters (SPNs) and messages (PGNs), the description of J1939 network nodes as well as the specific configuration data of the J1939 application.

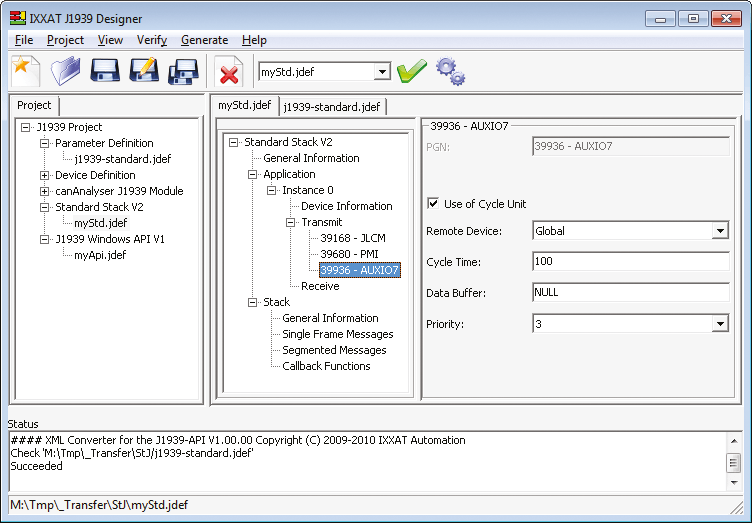

IXXAT SAE J1939 Designer
IXXAT SAE J1939 Designer
IXXAT SAE J1939 Designer

Features and benefits

  • Enables cross product configuration and code generation
  • Increase the development speed by avoiding errors caused by inconsistent data sets
  • Supports canAnalyser, SAE J1939 API and SAE J1939 protocol software (together with the extensions)
  • Supports the single and multi instance version of the J1939 protocol software
  • Allows an easy configuration of the protocol software exactly to the needs of the application
  • Provides an application specific user interface on parameter level for the protocol software
  • Allows the definition of proprietary messages and parameters via a comfortable graphical user interface

J1939 Designer

Thanks to the central definition of all relevant parameters in the form of XML files, C header files and application templates for the J1939 protocol software as well as configuration files for the J1939 API and J1939 canAnalyser module can be generated. Errors due to inconsistent data or configurations between the various applications are thus avoided.

In the case of the J1939 protocol software, in addition to parameterization of the software, an application specific user interface unit (USR) is generated, which allows the user to work on parameter level. In addition, the configuration of the J1939 protocol software also provides the basis for automated testing and analysis applications.

Contents of delivery
- J1939 Designer
- Code generatoren for the J1939 protocol stack, the J1939 API and the J1939-module for the canAnalyser
- Database with J1939 standaard messages and parameters
- Example projects
- Software as single-user license
- User Manual
- Technical support (time limited)
